Penetration Bitumen 50/70
Penetration Bitumen 50/70 (Asphalt 50/70) , is a standard penetration grade Bitumen typically utilized as a Paving Grade Bitumen suitable for road construction and for the production of
Penetration Grade Bitumen 50/70
Product Overview
Penetration Bitumen 50/70 is a grade of paving bitumen with a penetration range of 50–70 dmm at 25 °C. It exhibits a balanced hardness and flexibility, making it suitable for a wide range of road construction and asphalt applications.
Because it performs well in both hot mix asphalt and pavement surfacing, this grade is widely used in highways, urban roads, industrial surfaces, and general infrastructure projects.
The Bitumen supplied by Peak Universal Business is petroleum grade bitumen, manufactured from fractional/vacuum distillation of crude oil. It is produced from vacuum residue (short residue) feedstock.
Key Technical Properties of Bitumen 50/70
Penetration Bitumen 50/70 is engineered to deliver reliable mechanical performance and strong adhesive behavior with aggregates.
Typical Technical Characteristics:
Penetration (25 °C): 50–70 dmm
Softening Point (Ring & Ball): ~50–58 °C
Ductility @ 25 °C: ≥ 50 cm
Flash Point: ≥ 230 °C
Solubility in Trichloroethylene: ≥ 99%
Specific Gravity: Approx. 1.02–1.06
These properties ensure consistent binder performance during mixing, laying, and service life.
Engineering Performance Highlights
From an engineering perspective, Bitumen 50/70 delivers:
Balanced stiffness and ductility
Strong adhesion to aggregates
Good resistance to deformation under moderate traffic
Consistent thermal and mechanical behavior
Reliable workability for hot mix asphalt production
This profile makes Bitumen 50/70 a versatile choice across various pavement layers.
Applications of Penetration Bitumen 50/70
Highways and National Roads
Used in flexible pavement layers requiring balanced strength and resilience.
Hot Mix Asphalt (HMA)
This grade works well in hot mix asphalt blends, particularly where intermediate binder behavior is required.
Urban and Rural Roads
Bitumen 50/70 performs effectively in residential streets and urban road networks.
Industrial and Commercial Pavements
Provides reliable performance under moderate loading conditions.
Binder and Base Courses
Often specified in binder/base layers for flexible pavements.
Bitumen 50/70 is a semi-hard penetration grade, with penetration between 50 and 70. It is mostly used in road construction, asphalt pavement, and the manufacture of hot-mix asphalt.
Due to its performance characteristics, Asphalt Binder 50/70 is one of the most popular grades for highways, urban roads, residential streets, and airport runways. Its reliable quality makes it suitable for both heavy-duty and general road paving, delivering long service life and cost-effectiveness.
Main Uses of Paving Asphalt 50/70
Highways & main roads – durable for medium to heavy traffic.
Urban and residential roads – balanced binder for flexible pavements.
Airport runways – resists deformation under aircraft loads.
Moderate climate paving projects – reliable in hot and cold conditions.
Why Choose Bitumen 50/70?
Balanced mechanical properties for diverse use cases
Good resistance to traffic loading
Reliable thermal performance
Strong adhesion and cohesion
Smooth mixing and application in asphalt plants
This combination makes Bitumen 50/70 one of the most widely used penetration grades globally.
Standards & Quality Compliance
Penetration Bitumen 50/70 supplied by PEAK UNIVERSAL TRADING LLC typically complies with:
ASTM D946
EN 12591
Other regional or project-specific specifications upon request
Available documentation includes Technical Data Sheets (TDS), Certificates of Analysis (COA), and Safety Data Sheets (SDS).
Peak Universal Business guarantees the quality of bitumen penetration grade 50/70 with the arrangement of international inspectors to check the quality and quantity of the bitumen penetration grade 50/70 during loading to the vessel and controlling the production by QC by batch test report before shipping.
Peak Universal Business guarantees that the Asphalt Binder 50/70 is produced in compliance and conformity to International of European Standards.
Packaging & Supply Options
To support varied project requirements and logistics, Bitumen 50/70 is supplied in:
Bulk shipments
New steel drums
Jumbo bags
Tank containers
All packaging options are designed for safe transport, storage, and handling.

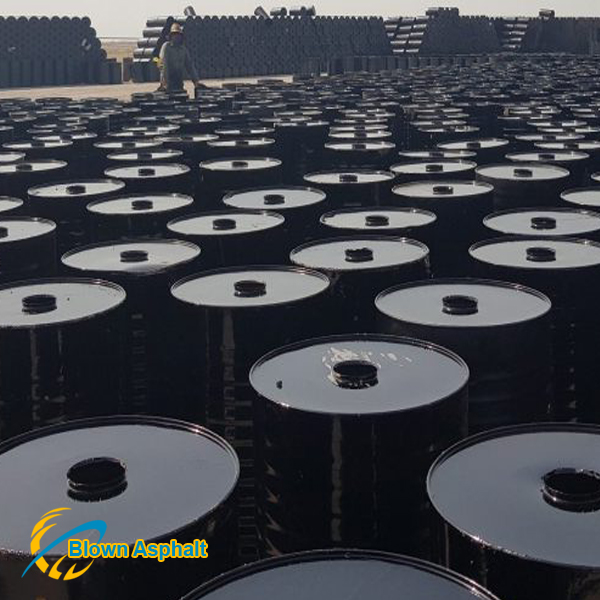

Paving Asphalt 50/70 is commonly packed in new steel drums, 150, 180 & 220 Kg barrels, and 1MT and 500Kg Jumbo Bags or 300kg Bit bag.
Likewise, the rest of the grades are ready to load Ex-work bulk Peak Universal Business by truck.
Comparison Table – Penetration Bitumen Grades
| Property / Grade | Penetration (dmm) | Hardness | Suitable Climate | Traffic Load | Typical Use |
|---|---|---|---|---|---|
| 10/20 | 10–20 | Very Hard | Hot | Very High | Heavy-duty pavements |
| 30/40 | 30–40 | Hard | Hot | Very High | Industrial & highways |
| 40/50 | 40–50 | Medium-Hard | Warm | High | Roads & highways |
| 50/70 | 50–70 | Medium | Moderate | Medium | Roads & urban pavements |
| 60/70 | 60–70 | Medium-Soft | Moderate | Medium | General road construction |
| 100/150 | 100–150 | Soft | Cool | Lower | Cooler climates |
FAQ – Penetration Bitumen 50/70
What is Bitumen 50/70?
Penetration Bitumen 50/70 is a semi-flexible paving bitumen with a penetration range of 50–70 dmm at 25 °C. It balances strength and workability.
Where is Asphalt Binder 50/70 used?
This grade is widely used in highways, urban roads, hot mix asphalt, and industrial pavements.
Can Asphalt Binder 50/70 be used in hot mix asphalt?
Yes, Asphalt Binder 50/70 works well in hot mix asphalt production due to its balanced mechanical behavior.
What standards does Bitumen 50/70 meet?
Typically, it complies with ASTM D946 and EN 12591, and it can be supplied to meet project-specific criteria.
What packaging options are available?
It is available in bulk, steel drums, jumbo bags, and tank containers.
How should Asphalt Binder 50/70 be stored?
For best results, store in a dry area and maintain recommended heating temperatures prior to use.
Medium Grade Bitumen 50/70 Technical Data Sheet:
For a comprehensive understanding of the technical specifications of Bitumen 50/70, please refer to the table below.
This table contains all the necessary information about the product, including penetration degree and softening point ranges.
If you require further clarification or have any questions, the Peak Universal Business team is readily available to assist you.
Our dedicated professionals are committed to providing you with the most suitable products for your projects, ensuring quality and reliability every step of the way.
Peak Universal Business team offers you the most suitable products for your projects with quality and reliability.
Read more about Penetration Bitumen
Request a Quote for Penetration Bitumen 50/70
Looking for a reliable source of Penetration Bitumen 50/70 for your infrastructure project?
PEAK UNIVERSAL TRADING LLC offers premium quality bitumen with dependable supply and expert technical support.
